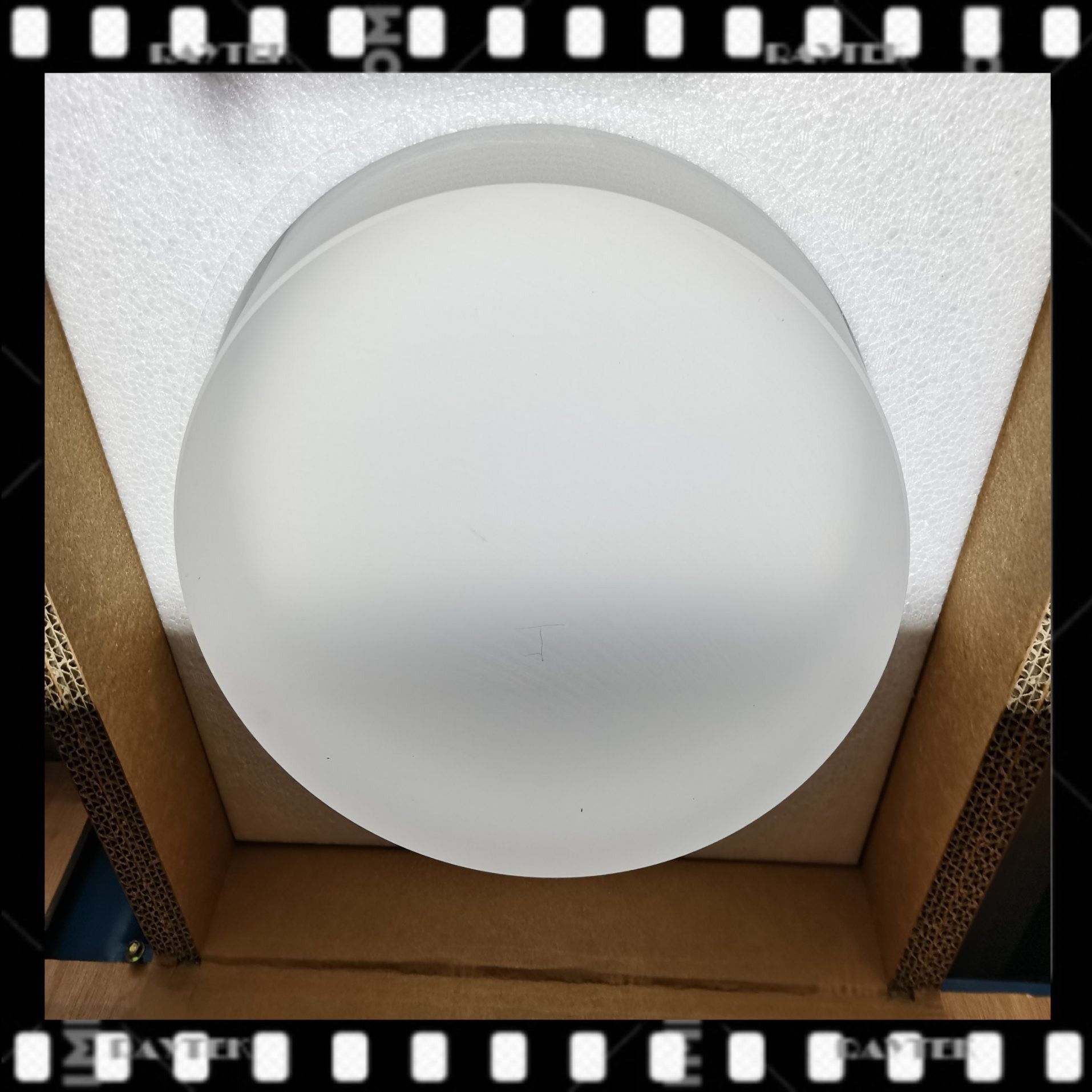

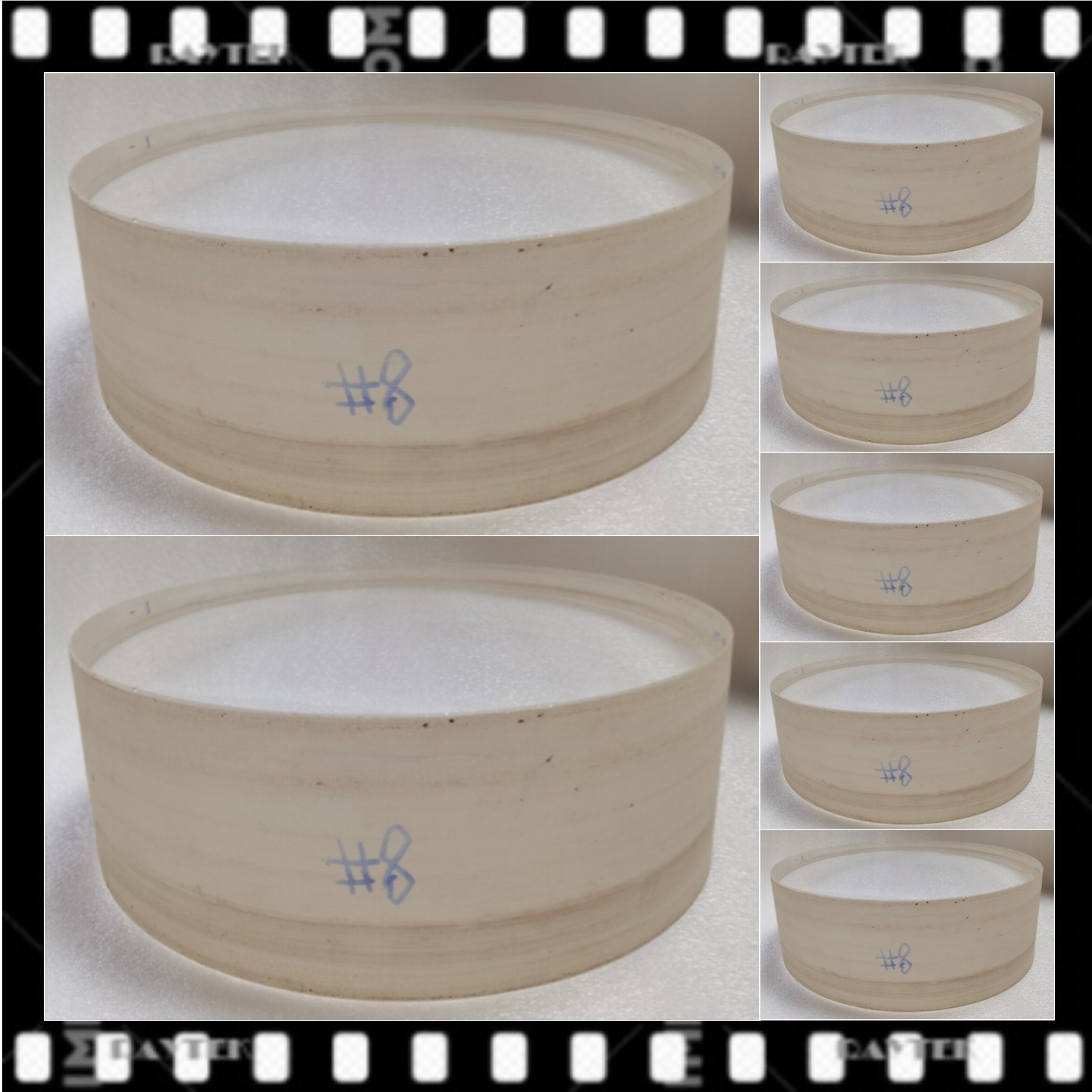

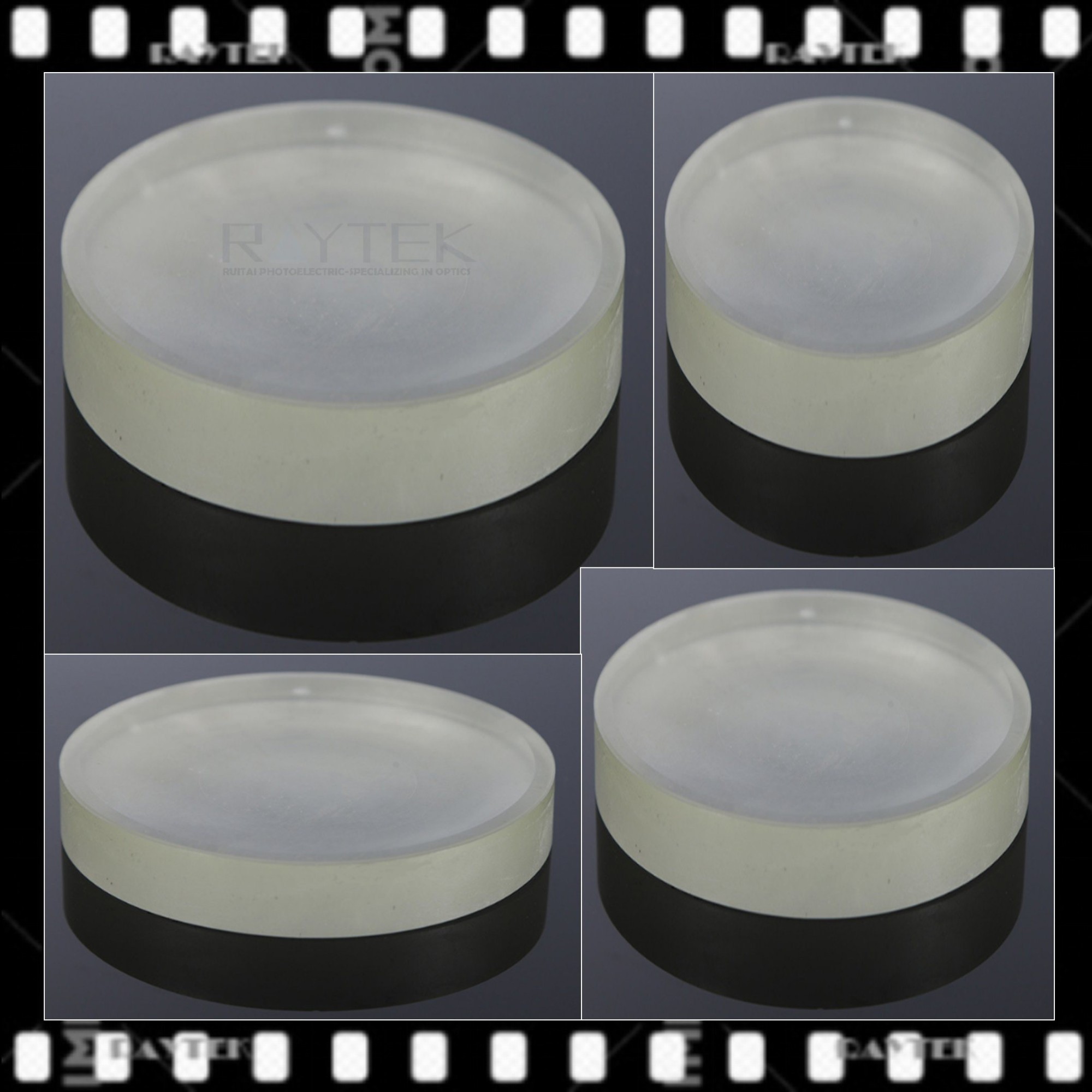

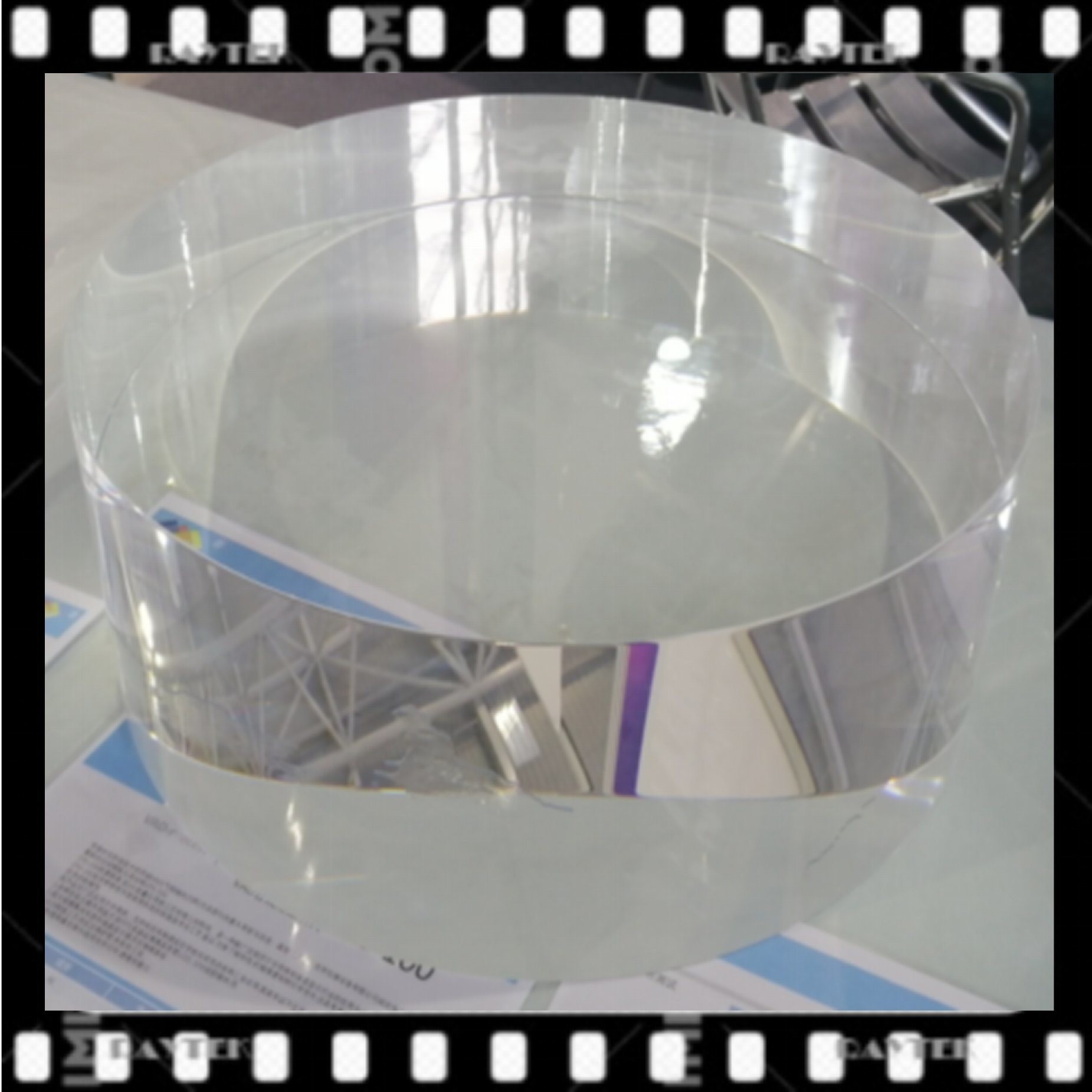

Ohara Sk-1310 Anhydrous Synthetic Fused Silica

Ohara Sk-1310 Anhydrous Synthetic Fused Silica

Product Item : RT20220510001#
Category： Materials
Type: Ohara Optical Substrate
Substrate: Ohara Sk-1310 Fused Silica
Bubbles: 0-0.03mm2/100cm3
Striae: Grade a in One Direction(as Per Mil-G-174)
Product description：Ohara Sk-1310 Anhydrous Synthetic Fused Silica/Ohara Optical Glass/Ohara Quartz
INQUIRY

General Introduction: Ohara SK-1310 is the anhydrous synthetic fused silica among the SK-1310 series products of VAD-based synthetic fused silica.
In addition to the high reliability of heat resistance,mechanical strength,and chemical resistance maintained by SK-1310,photolytic absorption is not generated to the infrared area of 2.73 μm,because it doesn' t contain hydrogenous radicals.SK-1310 products are fully renovated materials with the maximum transmission applicable to the entire ultraviolet,visible,and infrared areas.
The physical and chemical characteristics are prominent similar to the SK-1310 products in a broad range of applications in advanced technological industries such as semiconductors and opticals.

Products Name: OHARA SK-1310 anhydrous synthetic fused silica
Alias:OHARA SK-1310 glass, Ohara Sk-1310 fused silica, Ohara Sk-1310, Ohara Sk-1310 VAD fused silica, Ohara SK-1310 synthetic fused silica, Ohara SK-1310 optical glass, OHARA SK-1310 anhydrous fused silica, SK-1310 Ohara quartz,etc

Chemical Resistance:

Solution	Treatment Temperature(ºC)	Treatment Time(H)	Test Results
H20	95	45	0.0001-0.0002
1/100 NHNO3	115	24	0.005-0.01
5% NaOH	100	10	1.30

Optical Qualities:

Item	Grade
Bubbles	0-0.03mm2/100cm3
Striae	Grade A in one direction(As per Mil-G-174)
Birefrengence(Strain)	10nm/cm and under

Physical Properties:

Item	Unit	Value
Density	g/cm3	2.20
Yong's Module	GPa	71.6
Poisson's ratio		0.17
Compression strength	GPa	1.1
Bending strength	MPa	69
Tensile strength	MPa	55
Torsional rigidity	GPa	31.4
Vickers hardness	GPa	8.8-10.1
Knoop hardness	Kg/mm2	-
Coefficient of thermal expansion	cm/cmºC	5.5*10-7
Softening point	ºC	1700
Annealing point	ºC	1160
Strain point	ºC	1060
Specific heat(26ºC)	kJ/kgK	0.74
Thermal conductivity ratio(26ºC)	cal/cm.sec.ºC	-
Thermal conductivity ratio(100ºC)	Cal/cm.sec.ºC	-

Main Applying Fields:

Applying Fields:	1).Optical fibers 2).Optical elements for ultraviolet and infrared lenses or windows 3).All types of cells for ultraviolet or infrared transmission of entire areas of spectrophotometer 4).Electrical-discharge lamp tubing
*****

Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC

Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
